Coastal Rubber Floating Beach Barrier

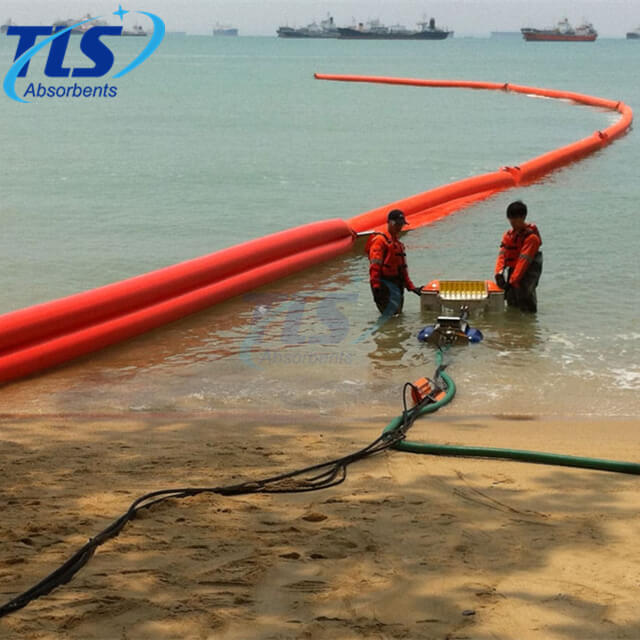

Coastal beach barrier are specially constructed to work in shallow or tidal areas. The beach sealing boom is fitted with water tubes on the bottom that sit on the beach but will float when the water level rises. Sometimes known as tidal seal boom these special purpose oil spill containment boom should only be used in calm water areas and not in breaking waves. The Coastal beach tidal boom is inflated and towed or carried to the deployment location, once in place the water tubes are filled with a portable pump.
Rubber beach shore boom is manufactured in Polyurethane and rubber type fabrics. The Rubber beach barrier types offer greater abrasion and tensile strength however they are considerably heavier to carry to the spill site and are more suited to vessel deployment. Coastal beach shore boom can also be used in marshy and swampy areas to surround a spill site, equally floating beach barrier can be used in inland waterways.
These floating oil containment booms can be linked up to conventional booms with a regular skirt providing common connectors are fitted. Refer to ASTM standards F962 & F2438. They are generally referred to as ASTM Slide or Quick ( Z) type connectors.
| Model | WQV750T | WQJ750T | WQV900T | WQJ900T |
| Material | PVC | Rubber | PVC | Rubber |
| Freeboard(mm) | 250 | 250 | 360 | 360 |
| Draught(mm) | 320 | 320 | 360 | 360 |
| Tensile Strength(KN) | 30 | 40 | 40 | 50 |
| Weight(kg/m) | 3.9 | 6.2 | 5.6 | 9 |
| Section length(m) | 12.5/20 | 12.5/20 | 12.5/20 | 12.5/20 |
| Wind speed(m/s) | 10 | 10 | 15 | 15 |
| Current(knot) | 1.5 | 1.5 | 2 | 2 |
| Wave height(m) | 0.75 | 0.75 | 1 | 1 |
If you need other size please contact TLS sales team directly .
 |  |
Over the years,TLS Team always stick to the principle of＂move customer,achieve staff's value,develop win-win cooperation＂.With many years of development,we have a more than 20person professional sales team and senior engineer team .We can provide prompt technical support ,on time quotation,perfect after sales service for all our esteemed customers.
Q1.Are you a factory or trading company?
Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.
A. We have sophisticated experience and professional knowledge & technology.
B. Both OEM and ODM orders are available.
Q2.What is the application of the Beach boom ?
The beach booms design for oil spill operations to use in a wide variety of conditions in sheltered water to open ocean waves.
Q3.Do you offer other size of the Beach boom?
yes ,we have different size of this item,if you have your won size please offer us ,we can offer you too.
